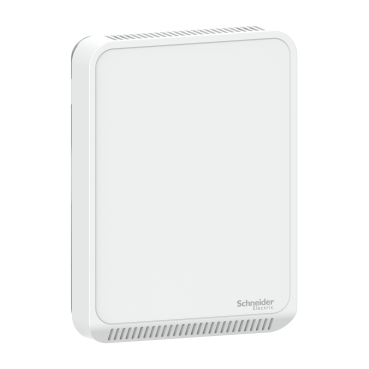

Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Blank – Sensor Base not inluded SXWSCBXSELXX

Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Blank – Sensor Base not inluded SXWSCBXSELXX

Add to wishlist
Category:
Brand:
Share:

Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Blank – Sensor Base not inluded SXWSCBXSELXX
SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 Sensor Bus that provides communication and power from the SmartX IP controller. SmartX living space sensors are modular and are ordered in two parts: the sensor base and the cover. Four SmartX communicating sensor base models are available that can be paired with any one of six covers. Carbon Dioxide (CO2), Relative Humidity, and Temperature sensor base options provide an efficient, cost-effective solution for living space air quality and comfort needs.
SXWSCBPSELXX
SXWSCBPSELXX
SXWSCBPSELXW
SXWSCBXSELXB
SXWSCBPSELXB

Specifications

Main
Range SpaceLogic
Product or Component Type Cover
Product name SmartX Living Space Sensor
Device Application HVAC
Product certifications CE conforming to EN 61000-6-3
RCM
EAC
ICES-003
Display Type Without Display
Flame Retardance UL94-V0
IP Degree of Protection IP20
Location Living Space
Depth 0.8 in (20 mm)
Height 4.5 in (115 mm)
Width 3.3 in (85 mm)
Ambient air temperature for operation 32…122 °F (0…50 °C)
Standards UL 916
FCC Part 15 class B
Color White
Device presentation Cover plate
Surface Finish Matte
Complementary
Material ABS (acrylonitrile butadiene-styrene) GF10 FR
Supply Base
Connections – terminals Bus terminal back)
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
EcoStruxure Building Operation SmartX Living Space Sensor base unit
Ordering and shipping details
Category US1BMS180230
Discount Schedule BMS1
GTIN 3606489507312
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 4.41 in (11.2 cm)
Package 1 Width 3.70 in (9.4 cm)
Package 1 Length 0.71 in (1.8 cm)
Package weight(Lbs) 2.1 oz (60 g)
