Siemens172H-10300 TwoWay Ball Valve Assemblies,

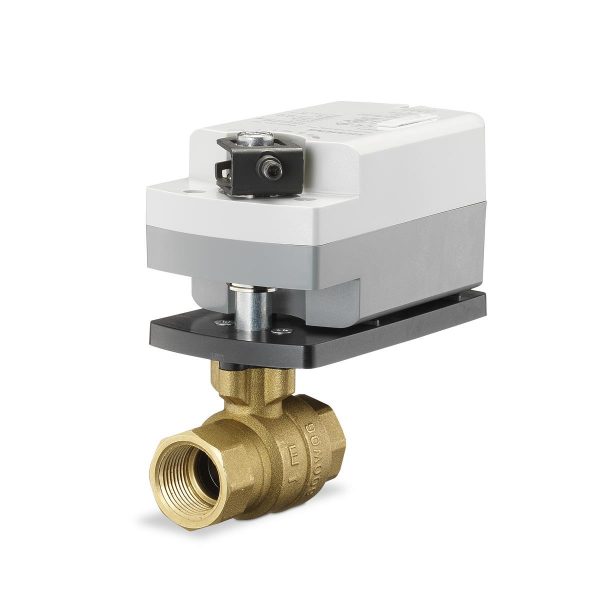

This 599 Series 2-way ball valve with a 2-position control,
normally open, fail safe actuator assembly,
providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors,
fan coil units, unit conditioners, radiation and reheat coils.
This 1/2-inch valve is 0.4 Cv, equal percentage flow characteristic,
with chrome-plated brass ball and brass stem,
and an operating handle that can manually operate the valve in the event of power failure.
172H-10300
172J-10300
172K-10300
172H-10300S
172J-10300S
172K-10300S
