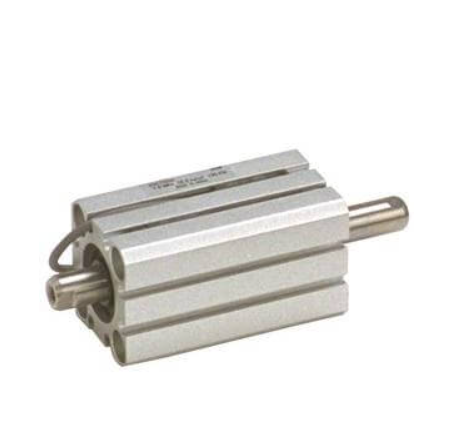

SMC C(D)QSW Compact Cylinder Double Acting Double Rod,
The CQS double rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern.
The CQS offers strokes up to 50mm. Both switch capable and non-switch capable body styles are the same,
and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Rods at both ends of cylinder
- Bore sizes: 12, 16, 20, 25 (mm)
- Strokes from 5mm through 50mm depending upon bore size
- Mounts: through hole/both ends tapped, foot, flange
- Variety of switches and a variety of lead wire lengths
