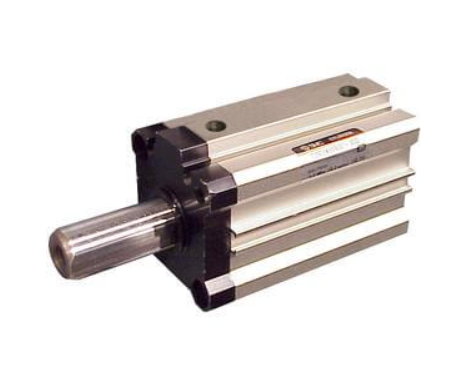

SMC C(D)QSK Compact Cylinder Double Acting Single Rod Non-rotating,
The CQSK single non-rotating rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern.
The CQSK offers standard strokes up to 50mm. Both switch capable and non-switch capable body styles are the same,
and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Non-rotating rod
- Bore sizes in mm: 12, 16, 20, 25
- Strokes: 5mm through 50mm depending upon bore size
- Mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis
- Variety of switches and a variety of lead wire lengths
