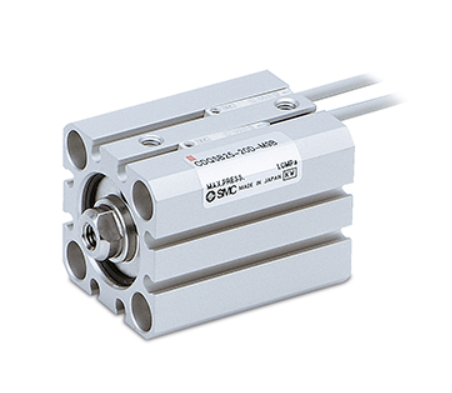

SMC C(D)QS Compact Cylinder Double Acting Single Rod,
The CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder applications where saving space is a concern.
The CQS offers standard long strokes (up to 300mm) in four bore sizes from 12 to 25mm.
Long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes.
Both switch capable and non-switch capable body styles are the same, and switches can be mounted on three (12-16 bore) and four (20-25 bore) sides.
- Standard double acting single rod
- Bore sizes: 12, 16, 20, 25 (mm)
- Strokes from 5mm through 300mm depending upon bore size
- Mounts: through hole/both ends tapped, foot, front or rear flanges, double clevis
- Variety of switches and a variety of lead wire lengths
