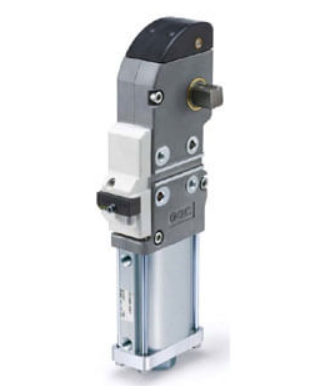

SMC CKZ3N Aluminum Body NAAMS Power Clamp Cylinder,
CKZ3N power clamp conforms to the NAAMS standard.
The improved design reduce weight by up to 39% with aluminum body.
The rounded cover design and release button with minimal protrusion, reduce weld spatter accumulation.
The arm opening angle ranges from 15° to 135° and can be easily change by replacing the stopper body. Available in 50 and 63 bore sizes.
- Complies with NAAMS standard (CKZ3N)
- 9 opening angles: 15, 30, 45, 60, 75, 90, 105, 120, 135
- 75 types of arm variations (CKZ3N)
- Metal cover and metal switch cassette options available
- Optional manual handle operator (X2568) available
