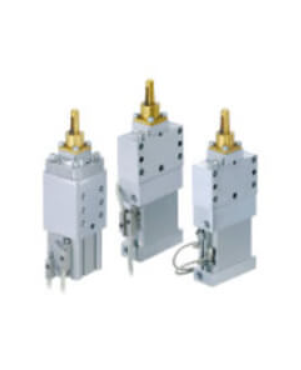

SMC C(L)KQG* Pin Clamp Cylinder Compact Type,
SMC’s pin clamp cylinder series C(L)KQG/P was designed with 4 body types for a broad range of installation conditions.
There are 55 types of guide pins available and an optional locking mechanism. C(L)KQG/P series has positioning and clamping at one time! Precision adjustment of clamping height is possible by choosing the with-shim type. Adjustment range: 0.5 to 3mm.
- Magnetic field resistant auto switch mounting type
- High or Low clamping heights available
- 29mm width
- Compact design makes it applicable to a broad range of workpieces
- Round and diamond guide pins
- 32mm bore size
