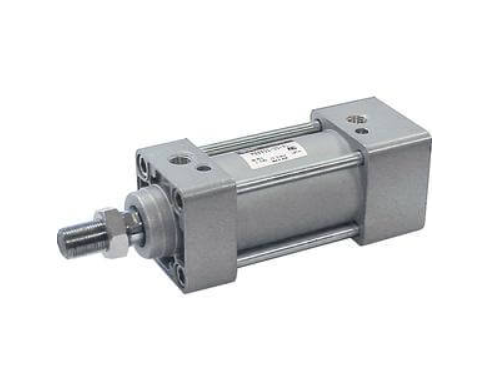

SMC M(D)BK-Z Air Cylinder Non-rotating Single Rod,
The MB series is a light weight, medium duty tie rod cylinder. Available bore sizes range from 32mm to 125mm.
The standard air cushion utilizes a floating cushion seal to eliminate piston rod bouncing.
The MB series is available with many standard options, which include stroke adjustment, tandem, high/low temperature seals, heavy rod scraper, non-rotating rod, double rod and many more.
- Non-rotating rod: double acting single rod
- Bore sizes: 32, 40, 50, 63, 80, 100 (mm)
- Strokes from 25mm through 800mm depending upon bore size
- Mounts: basic, foot, front or rear flange, single or double clevis & center trunnion
- With or without nylon or heat resistant rod boot
- Variety of switches and a variety of lead wire lengths
