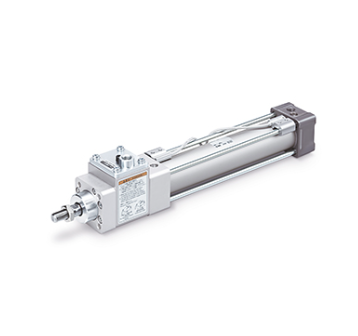

SMC M(D)WB Double Acting Single Rod w/Lock,
The MWB series is a tie-rod cylinder MB series with lock and is ideal for applications requiring intermediate stops,
emergency stops, and drop prevention.
The MWB series is an improved design over the MNB series with its improved ease of maintenance ,
with separate lock and cylinder construction. The exhaust locking design allows for the lock release to be manually operated with a hexagon wrench.
The MWB series is available with many standard options including seven mounting types, port thread variations, optional rod boot,
air cushion or rubber bumper cushion design, pivot bracket option and rod end bracket options. Available in bore sizes 32, 40, 50, 63, 80, 100mm.
- High stopping accuracy within +/-1mm
- Holding force up to 6080 N
- Locking in both directions
