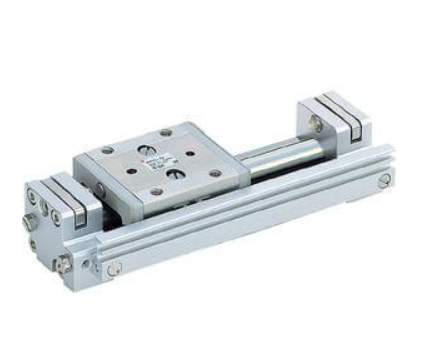

SMC MXY Long Stroke Precision Slide Table Recirculating Bearings Magnetically Coupled,
The MXY is a long stroke precision slide table, light weight in design that provides constant rigidity throughout the entire stroke,
up to 400 mm. It is integrated with hardened stainless steel guides,
and rails to isolate the load bearing from the movement of the piston rod and seals.
The stroke adjuster does not protrude from the slide table’s mounting surface for a compact footprint.
- Bore sizes: 6, 8, 12 mm
- Stroke adjuster options: rubber, metal stopper or shock absorber
- PTFE grease or food grade grease option
- RoHS compliant
- Auto switch capable
