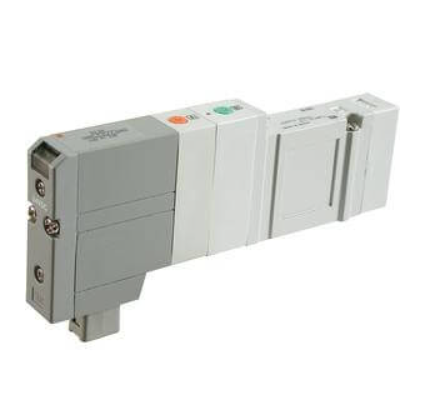

SMC SV1000 5 Port Solenoid Valve All Types,
The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring.
By connecting each block with a connector, changes to manifold stations are greatly simplified.
Cassette base type manifolds offer the ultimate in flexibility.
Manifold sections can be added using a simple release mechanism.
Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.
- Fluid: air
- Operating pressure range: -100kPa to 0.7MPa
- Response time ms (at 0.5MPa): 18 or less
- Coil rated voltage: 12, 24VDC
- Ambient & fluid temperature: -10 to 50° C
- Enclosure: IP67 (based on IEC529)
