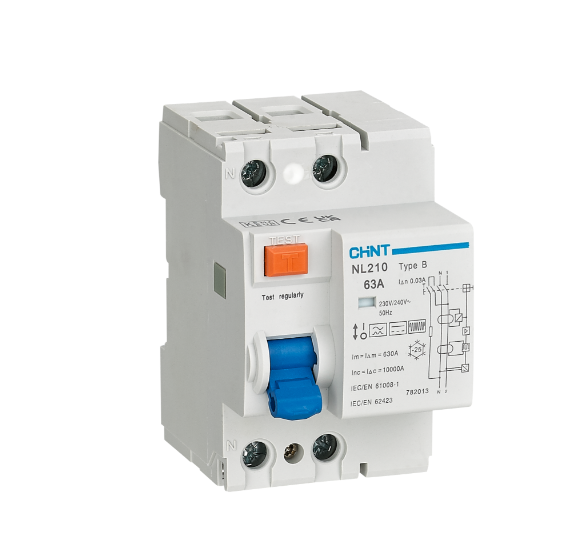

CHINT NL210 Residual Current Operated Circuit Breaker

CHINT NL210 Residual Current Operated Circuit Breaker,

without over-current protection (RCCB) is designe for protection against earth fault currents and fire hazards in residential,
commercial, and industrial installations. As a Type B RCCB, it detects AC, pulsating DC,
and smooth DC residual currents up to 1000Hz, ensuring maximum safety for modern electrical systems.
Compliant with IEC/EN 62423 and IEC/EN 61008-1, the NL210 provides instantaneous tripping,
sensitivity options of 30mA–300mA, and a 10kA short-circuit rating, ensuring dependable protection without over-current functionality.

• Function:
  • Controls electrical circuits
  • Protects people from indirect contact and provides additional protection from direct contact
  • Prevents fire hazards caused by insulation faults
• Type: Type B – detects AC, pulsating DC, and smooth DC residual currents up to 1000Hz
• Rated Current (In): 25A, 40A, 63A
• Number of Poles: 2P, 4P
• Rated Voltage (Ue):
  • 2P: 230/240V AC
  • 4P: 400/415V AC
• Rated Sensitivity (IΔn): 30mA, 100mA, 300mA
• Tripping Mode: Instantaneous (no time delay)
• Rated Insulation Voltage (Ui): 500V
• Rated Residual Making & Breaking Capacity (IΔm):
  • 500A for 25A/40A models
  • 630A for 63A model
• Short-circuit Current (Inc = IΔc): 10kA
• SCPD Fuse Rating: 10,000A
• Tripping Time under IΔn: ≤0.1s
• Rated Frequency: 50Hz
• Rated Impulse Withstand Voltage (Uimp): 4kV
• Dielectric Strength: 2kV for 1 minute
• Pollution Degree: 2
• Electrical Life: 4,000 operations
• Mechanical Life: 10,000 operations
• Operating Temperature: −25°C to +40°C
• Storage Temperature: −25°C to +70°C
• Protection Degree: IP20
• Terminal Connection Type: Cable, U-type busbar, or pin-type busbar
• Terminal Size:
  • Cable: 25mm² (In ≤ 40A), 35mm² (In = 63A)
  • Busbar: 10–16mm²
• Tightening Torque: 2.5 N·m (22 in-lbs)
• Mounting: DIN rail EN 60715 (35mm), with fast clip device
• Connection: From top or bottom
• Dimensions (mm):
  • 2P: 54(W) × 91(H) × 49.5(D)
  • 4P: 72(W) × 91(H) × 49.5(D)
• Approvals: CE, KEMA, VDE, RoHS, REACH
• Accessories: AX-5 auxiliary contact, TC-1 terminal cover
