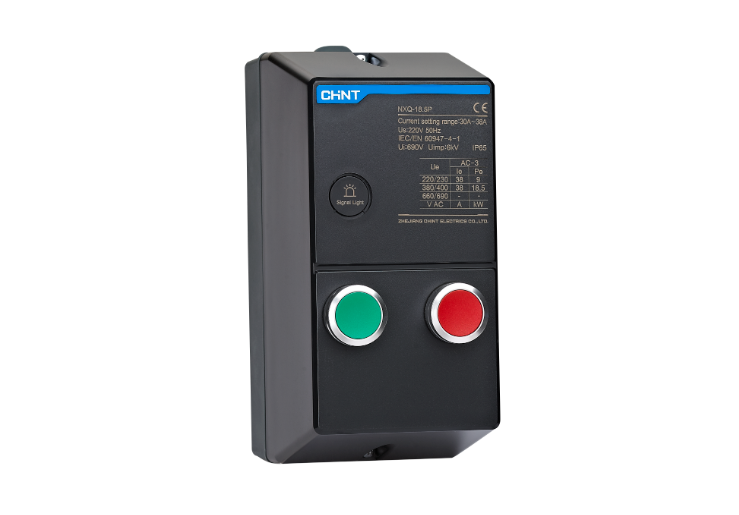

CHINT NXQ Series Electromagnetic Starter

CHINT NXQ Series Electromagnetic Starter

Add to wishlist
Category: Terminals & Bars
Brand: CHINT
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • Industrial grade PC Fanless design IBOX-708C

    Industrial grade PC Fanless design IBOX-708C

  • 1SBV011631R1211 / LS43M31B11 ABB standard reinforced Limit Switch made of zinc alloy material (Zamak)

    1SBV011631R1211 / LS43M31B11 ABB standard reinforced Limit Switch made of zinc alloy material (Zamak)

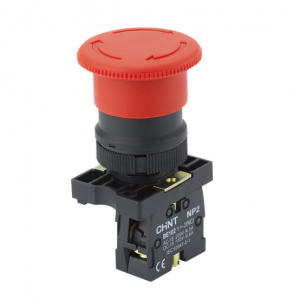

  • CHINT NP2 Pushbutton AC50/60Hz AC380V/DC220V

    CHINT NP2 Pushbutton AC50/60Hz AC380V/DC220V

  • 1635194 / TRIO-PM/1AC/24DC/2500W Phoenix Contact Primary-switched power supply unit, TRIO POWER, Screw connection, CAN bus, Panel mounting

    1635194 / TRIO-PM/1AC/24DC/2500W Phoenix Contact Primary-switched power supply unit, TRIO POWER, Screw connection, CAN bus, Panel mounting

  • Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen - Sensor Base not included SXWSCDXSELXX

    Schneider SXWS Cover Plate for Sensor Base for SmartX IP Controllers Color Touchscreen - Sensor Base not included SXWSCDXSELXX

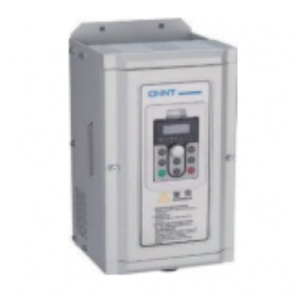

  • CHINT NVF2G-S General Purpose variable frequeny drive

    CHINT NVF2G-S General Purpose variable frequeny drive

Description
Shipping & delivery

CHINT NXQ Series Electromagnetic Starter,
it is designe for reliable motor control and protection in industrial and commercial applications.
furthermore It combines high-performance AC contactors and thermal overload relays in a compact, modular design.
moreover Supporting AC-3 motor control circuits up to 95A, the NXQ ensures smooth motor start, stop,
also protection against overload and phase failure. With robust construction, easy installation,
and compliance with international standards, it’s an ideal solution for pumps, compressors, conveyors, and machine tools.

  • first Standard Compliance: IEC 60947-4-1, GB/T 14048.4
  • second Rated Operational Voltage (Ue): AC 50/60Hz, up to 690V
  • next Rated Insulation Voltage (Ui): 690V
  • then Rated Current (Ie): 9A to 95A (AC-3 duty)
  • Control Circuit Voltage (Us): 24V, 110V, 220V, 380V, 415V AC
  • Motor Power Range (AC-3):
    • 4kW to 45kW (380/400V)
    • 3kW to 37kW (220/230V)
  • Protection: Thermal overload protection with adjustable current range
  • Coil Frequency: 50/60Hz
  • Enclosure Type: Metal or plastic enclosure (options available)
  • Mounting Type: Wall-mounted or panel-mounted
  • Operation Mode: Manual start, automatic or remote stop
  • Mechanical Life: ≥ 1,000,000 operations
  • Electrical Life: ≥ 100,000 operations
  • Ambient Temperature: −5°C to +40°C
  • Altitude: ≤ 2000m
  • Protection Degree: IP40 (standard enclosure), higher on request
  • Auxiliary Contacts: 1NO + 1NC (standard)
  • finally Installation: Screw or rail mounting, with easy wiring access
