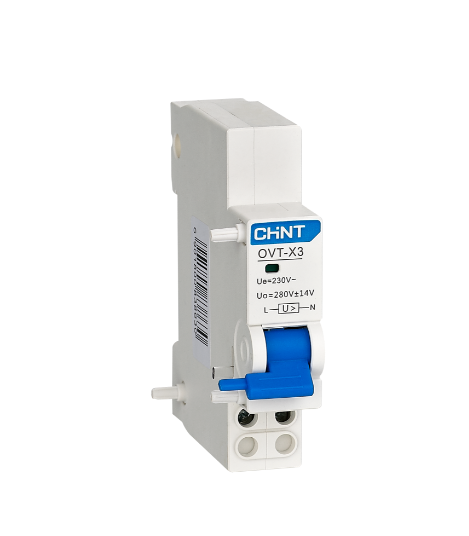

CHINT OVT-X3 Overvoltage release

CHINT OVT-X3 Overvoltage release,
is designe to integrate with NXB-125 series circuit breakers,
providing automatic protection against abnormal overvoltage conditions.
Operating at AC 230V 50/60Hz, it detects voltage surges beyond the safe limit (280V ±5%) and triggers the breaker to disconnect the circuit.
Compact, reliable, and easy to install on TH35-7.5 DIN rails,
the OVT-X3 ensures enhance safety for residential and commercial power distribution systems.

• Function: Provides automatic circuit disconnection under overvoltage conditions when paired with NXB-125 series circuit breakers
• Rated Operating Voltage (Ue): AC 230V, 50Hz / 60Hz
• Rated Insulation Voltage (Ui): 500V
• Overvoltage Setting Value (Uvo): 280V ±5%
• Action Characteristics:
  • Reliable operation within 85%–110% of Ue
  • Trips the connected breaker when voltage rises to 280V ±5%
• Compatible Circuit Breaker: NXB-125 series
• Mechanical and Electrical Life: 4000 operation cycles
• Mounting Method: TH35-7.5 steel DIN rail
• Installation Process:
  • Remove the left cover of the circuit breaker
  • Attach the OVT-X3 module to the breaker
  • Mount the assembly on the TH35-7.5 rail
• Dimensions:
  • Height: 81 mm
  • Width: 18 mm
  • Depth: 75.2 ±1.2 mm
• Mounting hole distance: 45 ±0.3 mm; slot size 50.5 ±0.3 mm (Figure 3, p.137)
• Certifications: RoHS compliant
