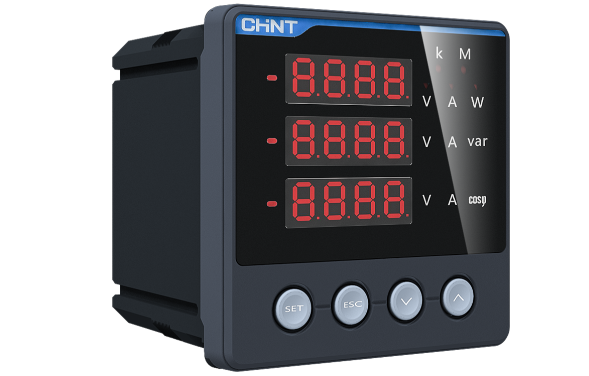

CHINT PD666,
-High Accuracy
-Large LED/LCD Display
-Easy Installation
Measurement:
-Compliance with IEC 62052-22 IEC62053-23 standard
-Connection type: 3P3W,3P4W
-Accuracy: Class 0.5S for active, Class 2.0 for reactive
Voltage:
-Nominal voltage: AC 450V
-Auxiliary Power Supply: AC/DC85-264V
-Power consumption: <3W, 15VA
Current:lb:5A
Frequency: 45Hz to 65Hz
Display Interface:
-LCD or LED
-With backlight
Communications:
-RS485,Modbus-RTU
-Baud Rate:1200bps, 2400bps,4800bps, 9600bps(default), 19200bps
Environmental:
-Operating Temperature:-10°C ~+45°C
-Storage Temperature :-25°C ~ +70°C
-Relative Humidity: ≤ 93%RH (non-condensing)
-Atmospheric Pressure: 86kPa ~ 106kPa
Security:
-Withstand Voltage: AC 2kV / 5mA / 1min
-Pulse Voltage: + 4kV 1.2/50 us pulse voltage (10 times per polarity)
-Insulation Resistance: Input and output terminals to case > 100MΩ
-Outage Data Retention time: > 10 years
