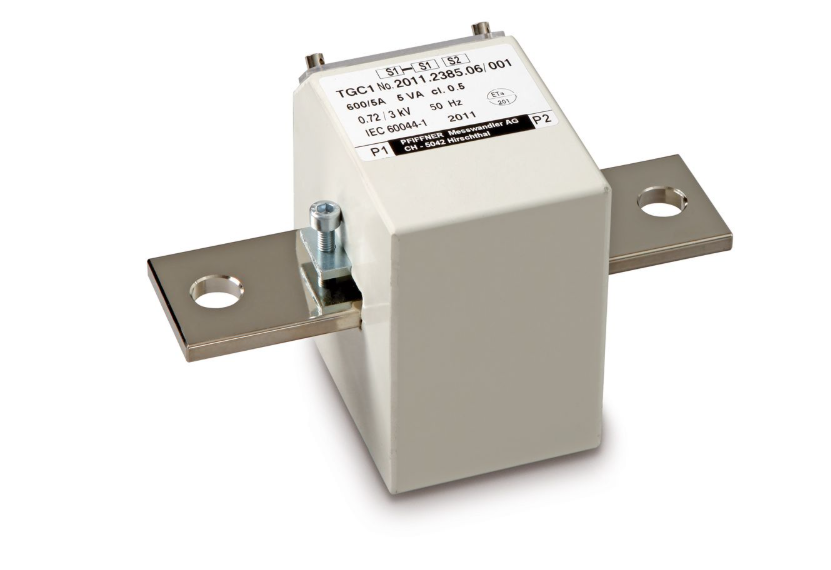

Current transformer TGC Bus-bar CT,
- Window type for bar
- Moulded in Polyurethane
- TGC 1+3: clamping bar as part of the delivery
- TGC 2: mounting plate as part of the delivery
- Standard: IEC/EN 61869-2
- Official calibration possible
Technical data
| Highest operating voltage | 0.72 kV |
| Test voltage | 3.0 kV |
| Frequency | 50/60 Hz |
| Secondary current | 5 or 1 A |
| Continuous thermal current | 120 % Ipr |
| Short-time thermal current | 60 Ipr 1s |
