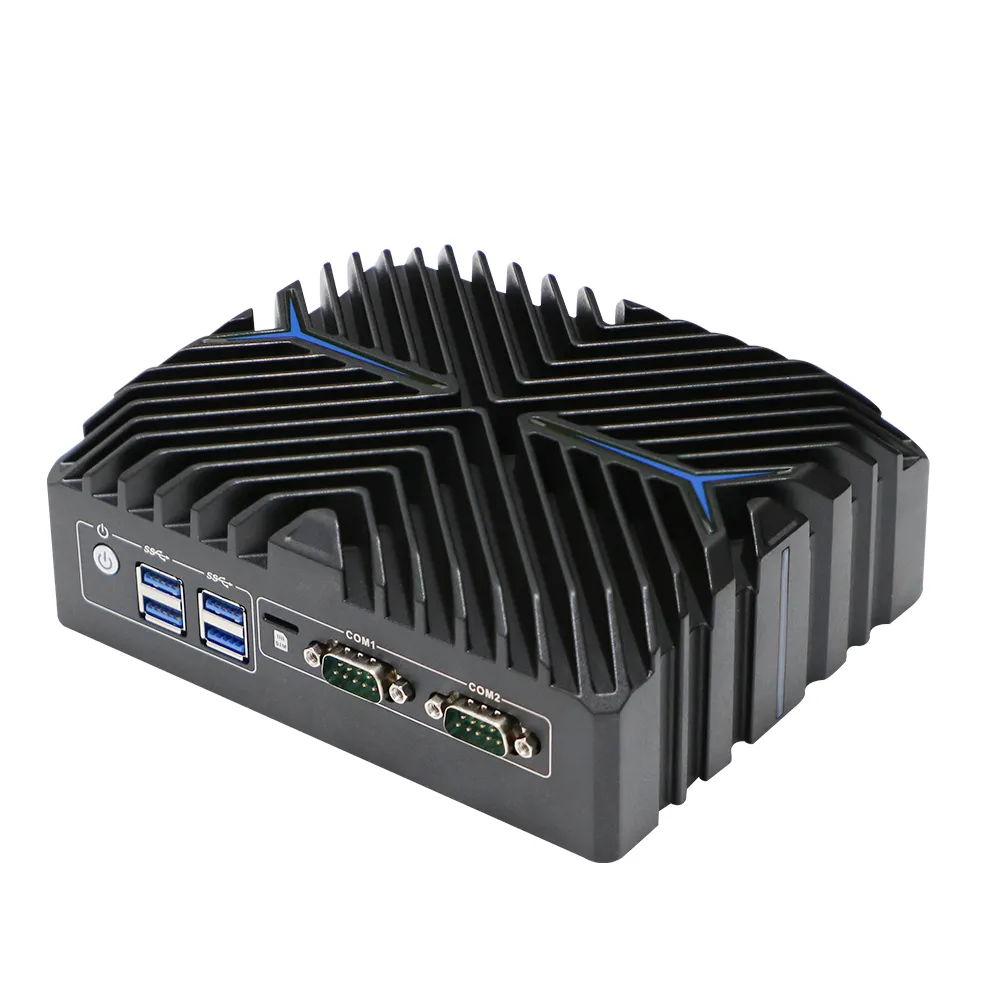

Intel Core 12th gen core i3 i5 i7 processor Mini PC 4K display port synchronous and asynchronous dual display
| System Parameter | |
| Model | N3222 |
| Processor | Intel Core i3 1215U（Six core Eight threads，Turbo. 4.4 GHz） |
| Intel Core i5 1235U（Ten core Twelve threads，Turbo. 4.4 GHz） | |
| Intel Core i7 1255U（Ten core Twelve threads，Turbo. 4.7 GHz） | |
| Memory | 1*DDR4 3200 SODIMM memory slot，Max. 32 GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Intel(R) UHD Graphics |
| Display Port | 2*HD |
| Storage | Support 1*M.2 2280 Slot，1*2.5”HDD ，support RAID 0/1 |
| Expansion | 1*M.2 2280 M-Key slot（NVME）
1*M.2 3052 B-key slot（USB3.0，support 4G/5G），External SIM card slot 1*MINI-PCIE slot（support WIFI,BT） |
| I/O | 2*COM port support RS232 mode，1*SIM slot，3*USB3.1,1*USB2.0,1*Power button
1*DC port，2*HDMI，2*USB2.0，2*RJ45 LAN，1*audio interface(2-in-1) |
| Network | 2* RTL8111H Gigabit Ethernet |
| Input Voltage | Support DC 12V |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption）(Standard version doesn’t set these function) |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc. |
| Structure Parameter | |
| Color | Metallic Black【Any color can be customized】 |
| Material | High-quality all aluminum |
| Dimension | 170 * 140 * 58 mm |
| Weight | 1.1 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
