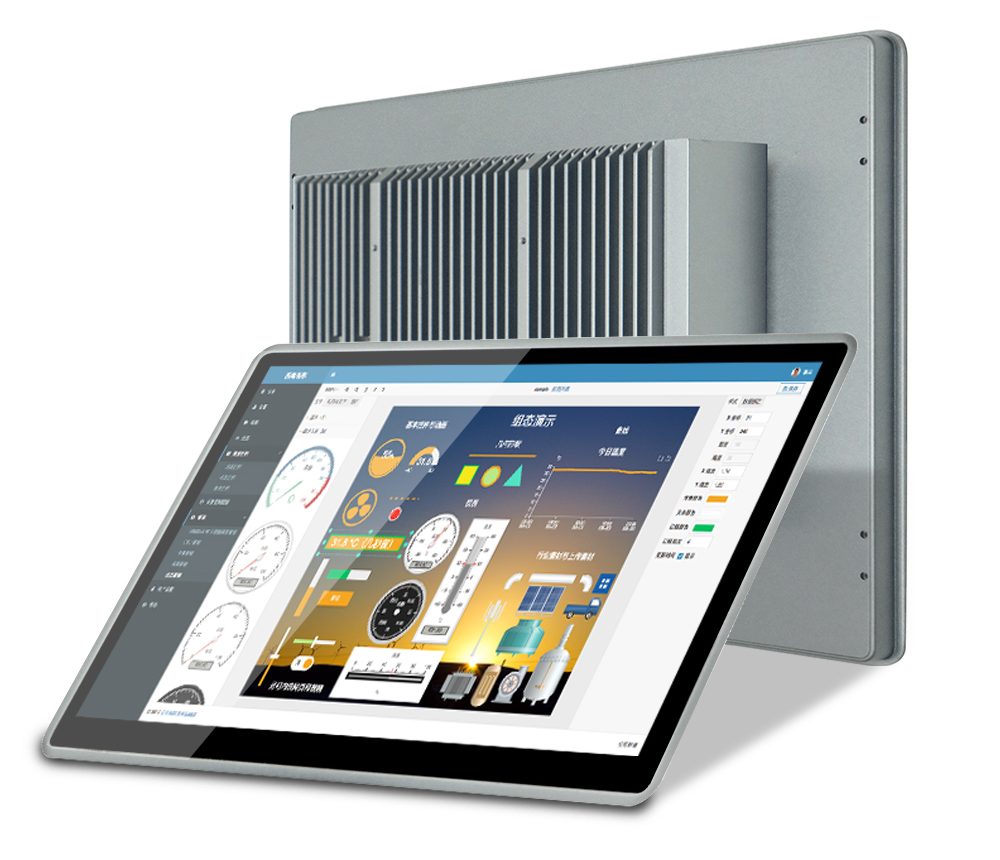

Ip65 Waterproof 12.1industrial Embedded Fanless Capacitive I5 Touch Screen All in One Panel Pc.
Specifications
| Model | ITPC-B121-CH2 |
| Color | Grey |
| Material | Aluminum alloy + steel plate |
| Size | 12.1inch TFT-LCD |
| Brightness | 500 cd/m2 |
| Viewing Angle | Full Angle |
| Ratio | 4:3 |
| Resolution | 1024 * 768 |
| Touch Screen | Multi-point capacitive touch screen, life can reach more than 50 million times; Fit with LCD screen; |
| Processor | 6/8/10/11th Gen Intel Core i3/i5/i7, （The specific model is subject to shipment） |
| Memory | 6/8/10/11th Gen i3/i5/i7：support 2*DDR4 memory slot， Max. 32GB |
| Storage | 1*MSATA slot（It depends on the selected motherboard） |
| Display Chip | Intel Graphics core display card |
| Display Port | 1*VGA，1*HDMI，1*LVDS；, （synchronous and asynchronous dual display） |
| Expansion Slot | 6th Gen：support 1*mini PCIe slot， （Support WIFI/4G module choice） |
| 8/10/11th Gen i3/i5/i7: support 2*M.2 slot，（ It also supports WIFI/4G） |
|
| I/O | 1*Power switch，1*DC，1*HDMI，1*VGA， 2*USB 3.0，2*USB 2.0， |
|
2*1000M Lan ports，1*Mic，1*Line Out， |
|
| Speaker | 2*8Ω2W Speaker{Custom wide pressure, （DC24V in/DC9~36V） Only have 1*speaker} |
| Input Voltage | DC 12V(9-36V wide voltage can be customized) |
| Work Temp | 0℃ ~ +50℃, surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
| Dimension | 298 * 237 * 48 mm |
| Weight | 2.4kg |
| Application | Industrial Automation，Medical， Logistics Transportation, Warehousing, Machine Vision, etc. |
