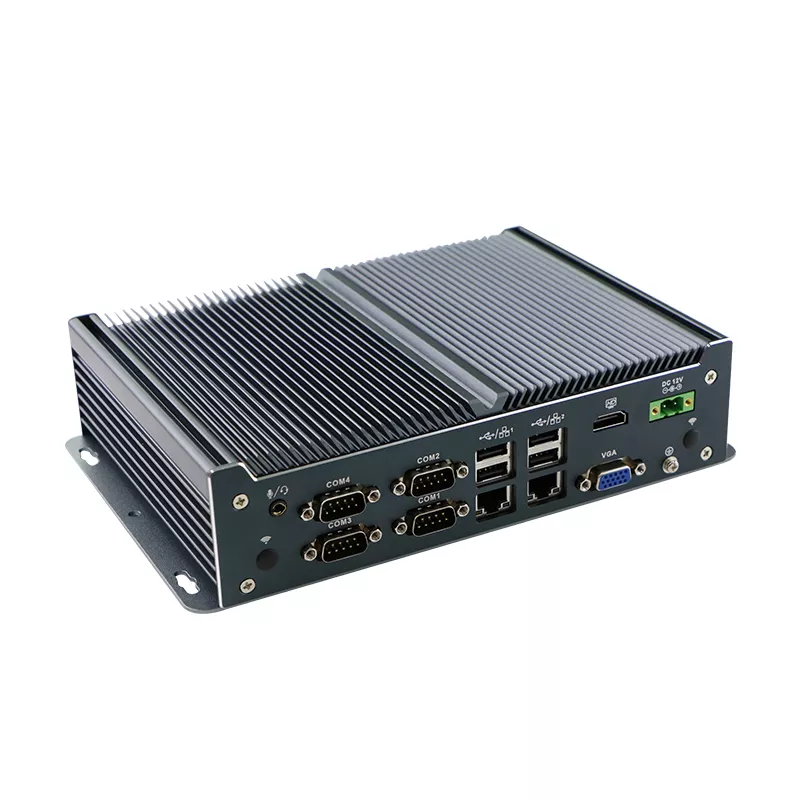

J1900 Fanless Industrial Computer,
with rs485 with pcie slot,
and Intel Celeron J1900 quad core,
and processor 8*USB 6 Com 2*Intel 1000 M Lan.
| System Parameter | |
| Model | IBOX 1126 PLUS Fanless System |
| Processor | Onboard Intel Celeron J1900, （Quad core quad threading，1.99GHz，TDP: 10W） |
| Chipset | J1900（Single Chip） |
| Memory | Support 1*DDR3L 1333/1600MHz SODIMM RAM slot， Max. Support 8GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display Port | 1*VGA，1*HD-MI. （Support synchronous and asynchronous dual display） |
| Storage | Support 1*MSATA，1*2.5”HDD |
| Expansion | Support 1*Mini PCIE Slot, 【WIFI/3G/4G Optional】Embedded SIM Slot |
| I/O | 4*USB2.0，2*COM，1*Power Switch, 2*1000M LAN， 1*HDMI，1*DC 12V Input，1*Mic， 1*Line Out1*USB3.0，1*USB2.0， 4*COM（COM1、COM2 RS232/485 Optional）， 1*3PIN Phoenix connector |
| Network | 2* Intel i211-AT 1000M LAN |
| Input Voltage | Support DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、 Timing boot、Wake on LAN、 PXE boot、Watchdog（0～255 level）, (Standard version doesn’t set these function) |
| Application | Industrial Automation, Medical, and Logistics Transportation, with Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Titanium gray（Color can be customized） |
| Material | Pure Aluminum |
| Dimension | 234 * 155 * 53.5mm 【Not include the brackets】 |
| Weight | 1.8kg 【Not include the brackets】 |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
