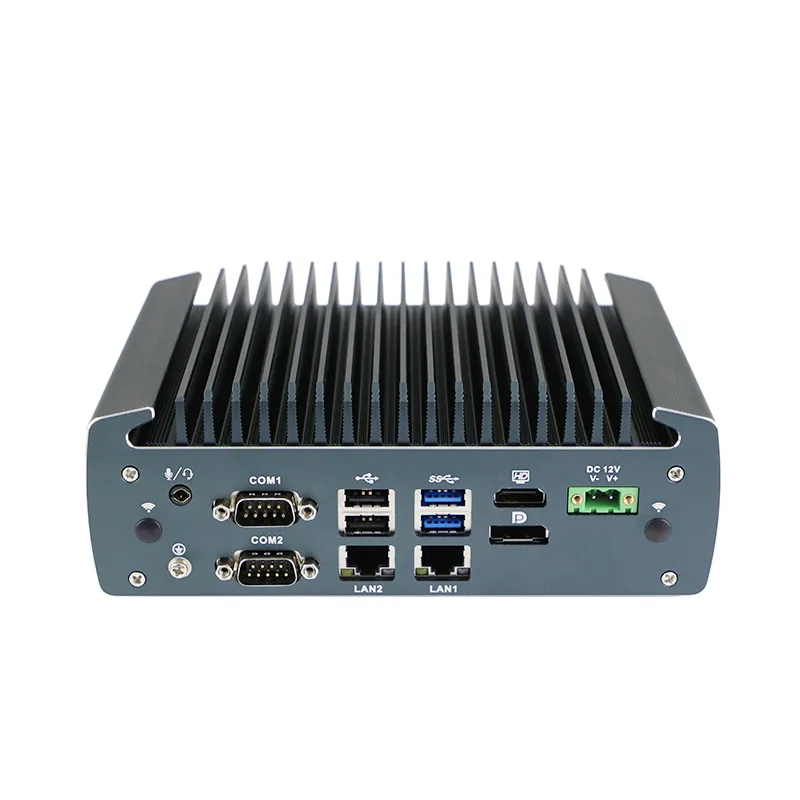

J6412 Mini Industrial PC With 3×2.5G Lan 12th Gen Intel Elkhart Lake 1xDDR4 SODIMM slot Max: 32G
| System Parameter | |
| Model | IBOX 1226 IPC |
| Processor | Intel Celeron J6412（Quad core quad threading， 2.0GHz,Max to 2.6GHz，TDP: 10W） |
| OS | Support Win10/Win11/Linux |
| Memory | 1*DDR4 3200MT/s SODIMM, Max 32 GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Intel HD Graphics |
| Display Port | 1*DP，1*HD-MI （Support synchronous and asynchronous dual display） |
| Storage | Support 1*M.2 slot (SATA protocol) , 1*2.5” SSD/HDD |
| Expansion | Support 1*M.2 M-key slot 2280, SATA protocol
1*M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot; 1*MINI PCIE slot (for WIFI&BT) |
| I/O | 4*COM, 2* USB2.0, 1*Intel 2.5G Lan, 18 bits GPIO Phoenix, 1*Power switch 2*COM (COM1 and 2, 1*HD-MI, 1*DP, 1* 2Pin Phoenix, |
| Network | 3*Intel i226-V 2.5G Lan |
| Input Voltage | Support DC 12V Input；(DC 9-36V Optional ) |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、 Watchdog（0～255 level）, (Standard version doesn’t set these function) |
| Application | Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc. |
| Structure Parameter | |
| Color | Dark grey（Color can be customized） |
| Material | High-quality all aluminum, surface hard anodized |
| Dimension | 186 * 140 * 66 mm |
| Weight | 1.5kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃（Commercial HDD）， -20℃ ～ +60℃（Industrial SSD）， Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
