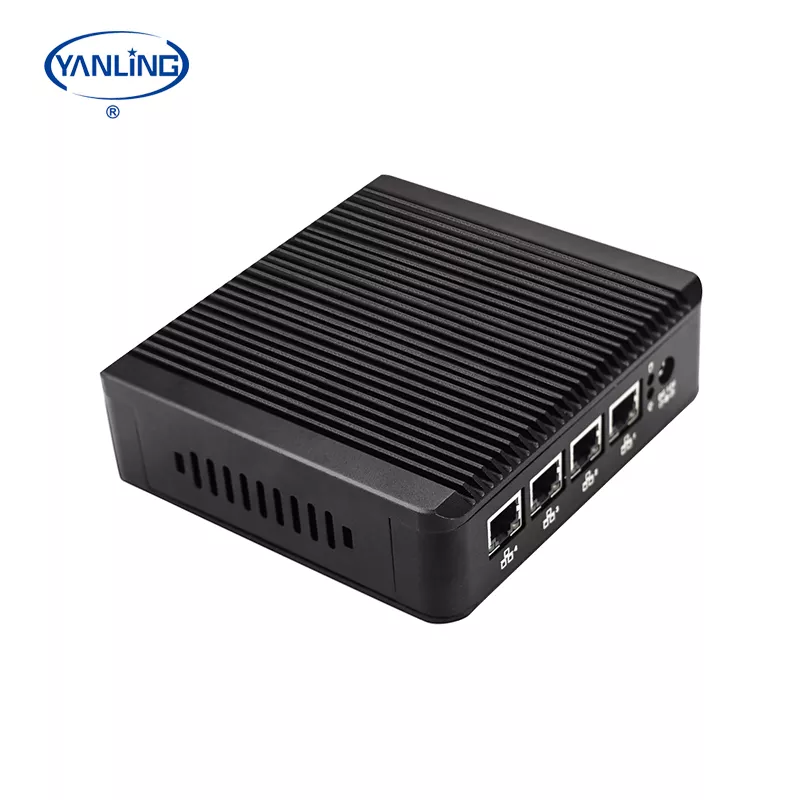

J4125 quad core Pfsense Firewall PC,
with 4x Intel i225V-2.5G Ethernet Lan,
and MAX 2 DDR4 2400MHZ 8G Ram
| System Parameter | |
| Model | Nano-N25 Mini Firewall pc |
| Processor | Intel Celeron J4125（Quad core quad threading, Base frequency 2.0 GHz,Turbo to 2.7GHz） |
| RAM | Support 2*DDR4 2400MHz SODIMM RAM Slot, Max. Support 8GB |
| Display Chip | Integrated Intel UHD Graphics 600 |
| Display Port | 1*VGA，1*HDMI（resolution up to 3840×2160 @ 30Hz, support audio ） |
| Front I/O | 1*Power Switch，2*USB3.0，1*RJ45 COM, （Support Console Function）1*VGA,1*HDMI |
| Rear I/O | 4*RJ45 LAN，1*DC Input |
| Expansion Slot | 1 full height MINI PCIE slot (optional support WIFI/3G/4G, Embedded SIM Slot ) |
| Network | 4*Intel i225V-2.5G LAN |
| Storage | 1* MSATA Slot,1*2.5″ SSD/HDD |
| Input Voltage | DC 12V |
| Other Function | Auto power on when there is electricity, Timing boot、Wake on LAN、PXE boot |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Firewall, VPN, Network Server, Network Security, VPN Router etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality all aluminum, surface anodic oxidation |
| Dimension | 134* 126 * 38.5mm |
| Weight | 2 kg |
| Environmental Parameter | |
| Work Temp | -20℃ ～ +50℃ |
| Work Humidity | 5% ～ 95% non-condensing |
