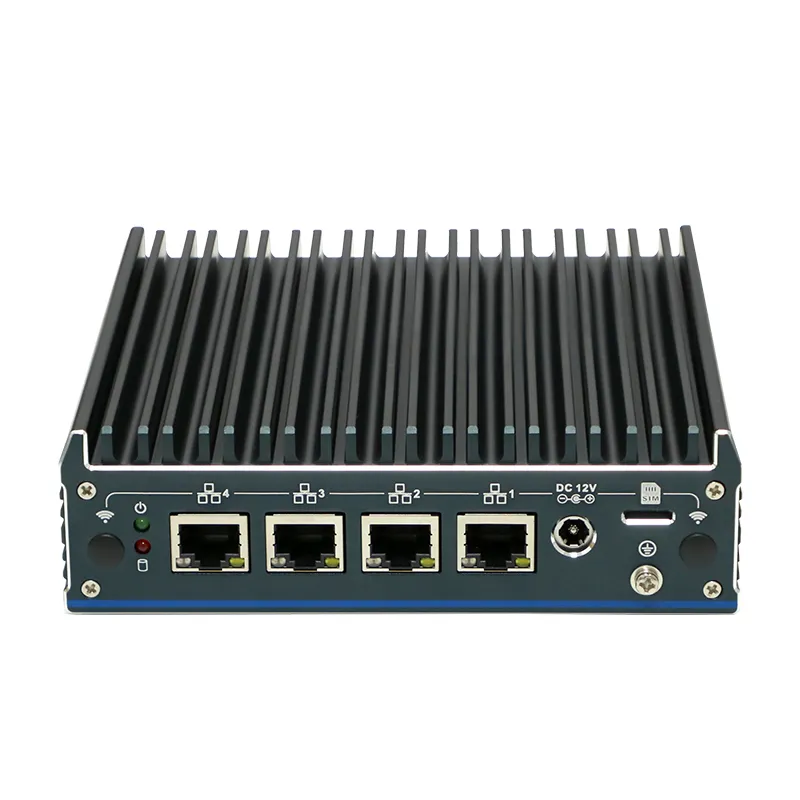

J6412 Firewall Mini PC 4 Lan 12th gen,
and elkhart lake fanless network appliance,
with DDR4 3200MHz MAX 32GB RAM.
| System Parameter | |
| Model | N1141 Network Firewall |
| Processor | Intel Celeron J6412（Quad core quad threading, 2.0GHz，Max turbo 2.6GHz） |
| CPU Architecture | Elkhart Lake |
| Chipset | Intel(R)UHD Graphics |
| Memory | Support 1*DDR4 3200MHz,MAX 32GB RAM Slot |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*HD，1*DP |
| Storage | 1*M.2-2280SSlot，1*2.5’’ HDD |
| Expansion | 1*M.2-2280 M-key Slot（Support SATA Protocol） |
| 1*M.2-2230 E-key Slot（support WIFI、Bluetooth） | |
| 1*mini PCIE slot（Support 4GM modem,outside SIM slot, support USB signal WiFi/Bluetooth） |
|
| Front I/O | 1*Power switch,1*DP,1*RJ45 COM(Support Console function), 2*USB2.0,2*USB3.1,,1*HDMI,1*Restart button |
| Rear I/O | 4*RJ45 LAN,1*DC IN,1*SIM card slot |
| Network | 4*Intel i226-V 2.5G LAN |
| Input Voltage | DC 12V； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | Auto power on when there is electricity, Timing boot, and Wake on LAN、PXE boot, with Watchdog（0～255 level） |
| Application | Firewall, VPN, Network Server, with Network Security, Router and etc |
| Structure Parameter | |
| Color | Metal gray |
| Material | High-quality all aluminum, and surface anodic oxidation |
| Dimension | 144 * 136.7 * 42 mm |
| Weight | 0.78 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD), -20℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
