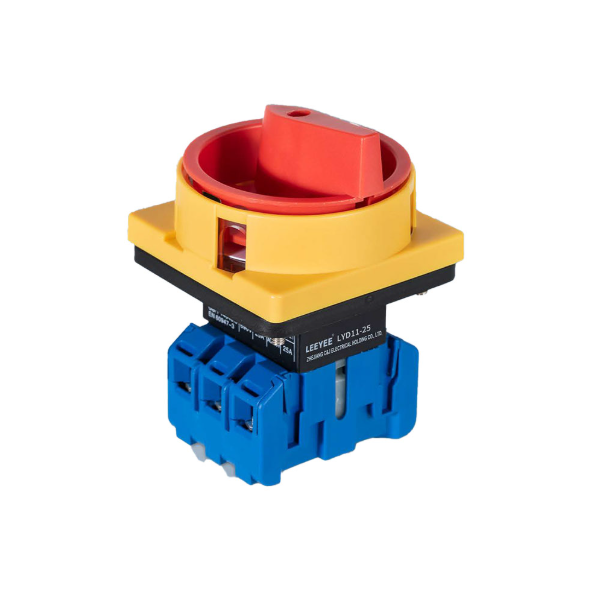

Load Breaking switch LYD11,
LYD 1 1 Load break switch , with good figure and small size ,Applicable to the power distribution board and the control switchesmust be occasions in switch cabinet .Widely used for air-conditioning system and pump system ,used as main switch forinsulation and safety isolation.
LYD11 Load break switch insulation distance is greater than the other switch of electric shock , and has the finger protectionfunction, safe and reliable ,and can be used to ON/OFF control ,urgent stop ,switch conforming to lEC 947-3/DIN VDE 0660(EN60947-3)standards.

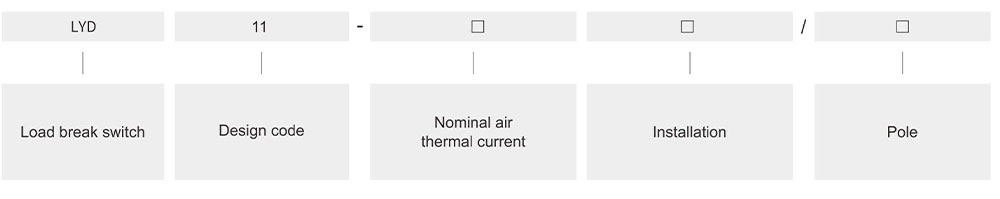

Model and Meaning
Producet Application
LYD 1 1 Load break switch , with good figure and small size ,Applicable to the power distribution board and the control switchesmust be occasions in switch cabinet .Widely used for air-conditioning system and pump system ,used as main switch forinsulation and safety isolation.
LYD11 Load break switch insulation distance is greater than the other switch of electric shock , and has the finger protectionfunction, safe and reliable ,and can be used to ON/OFF control ,urgent stop ,switch conforming to lEC 947-3/DIN VDE 0660(EN60947-3)standards.
Installation
No code for panel installation with padlock
B: Mount with padlock handle/door interlock base
C: Single padlock rail installation
Compliance
T: Panel installation
D: With lP65 thermoplastic sealed box
Technical Details
| Type | LYD11-25 | LYD11-25 | LYD11-25 | LYD11-25 | LYD11-25 | LYD11-25 | ||||||||||||||||||||||||||
| Rated insulation voltage Ui (V) |
690V | 690V | 690V | 690V | 690V | 690V | ||||||||||||||||||||||||||
| Hot current contract Ith(A) |
25A | 32A | 40A | 63A | 80A | 100A | ||||||||||||||||||||||||||
| AC-201A AC-21A(A) | 25A | 32A | 40A | 63A | 80A | 100A | ||||||||||||||||||||||||||
| AC-22A | 20A | 32A | 40A | 63A | 80A | 100A | ||||||||||||||||||||||||||
| Rated operating voltage Ue (V) |
220 | 380 | 500 | 220 | 380 | 500 | 220 | 380 | 500 | 220 | 380 | 500 | 220 | 380 | 500 | 220 | 380 | 500 | ||||||||||||||
| AC-3(KW) | 3 | 5.5 | 5.5 | 4 | 7.5 | 75 | 7.5 | 11 | 15 | 11 | 18.5 | 22 | 15 | 22 | 30 | 18.5 | 30 | 37 | ||||||||||||||
| AC-23(KW) | 4 | 7.5 | 7.5 | 5.5 | 11 | 11 | 7.5 | 15 | 18.5 | 11 | 22 | 30 | 18.5 | 30 | 37 | 22 | 37 | 45 | ||||||||||||||
