Schneider STX120 immersion temperature sensor STX-120-200 2 m cable (6.56 ft) TAC Vista and TAC Xenta compatible 5123302000

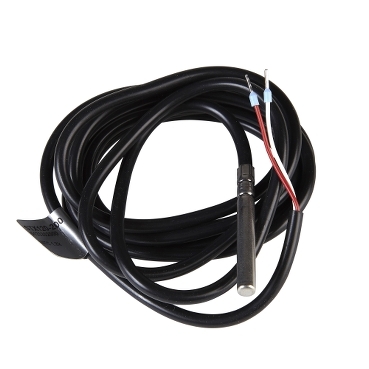

The sensor, which is made of stainless steel, is delivered with a 2 m (6.56 ft.)
or 4 m (13.12 ft.) cable PVC sheathed overall. STX120 is intended for
measuring water temperature in heating applications, mounted in a
well/pocket.
Accuracy: See Appendix A, tables A, D
Calibration certificates: See Appendix B
Thermistor table: See Appendix C, table A
5123304000 STX120-400

Specifications

Main
Range of product STX120
Product or component type Sensor
Type of measurement Temperature
Device application Immersion application
IP degree of protection IP65
location Plant room
Mounting support Pipe
Product weight 0.08 kg
Output type Resistive output
Colour Cable: black
Ambient air temperature for operation -40…120 °C
Relative humidity 0…90 %
Sensor type 1.8 kOhm NTC temperature
Targeted region Asia Pacific.
Europe
Complementary
Material PVC (polyvinyl chloride): cable
Stainless steel: sensor
Time constant 6 s
Connections – terminals Wire (AWG 24…AWG 18)
Number of cables 1 <2 m
Measurement accuracy 0…25 °C +/- 0.3 °C
Environment
Temperature probe type NTC 1800 Ohm at 25 °C
Product certifications CE
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.8 cm
Package 1 Width 6.6 cm
Package 1 Length 4.4 cm
Package 1 Weight 80 g
Contractual warranty
Warranty 24 months
