Schneider TC900 Fan coil thermostats SpaceLogic On/Off Protocol 3 Fan Auto 240 V Capacitive Bk TC907-3A4LXPXAB

Schneider TC900 Fan coil thermostats SpaceLogic On/Off Protocol 3 Fan Auto 240 V Capacitive Bk TC907-3A4LXPXAB

Add to wishlist
Category:
Brand:
Share:

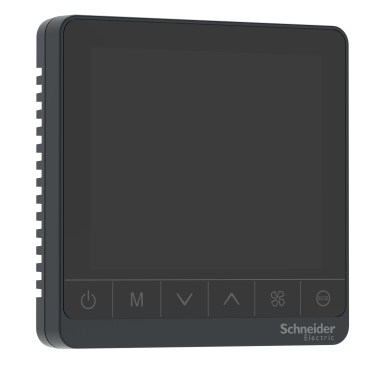

Schneider TC900 Fan coil thermostats SpaceLogic On/Off Protocol 3 Fan Auto 240 V Capacitive Bk TC907-3A4LXPXAB
The TC900 Protocol Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications.
These devices can be used for 2-pipe or 4-pipe applications and can communicate with Building Management Systems over BACnet or Modbus protocol.
Available in two housing finishes: optimum (black glass display with capacitive
buttons on a black base) or medium (white glass display with mechanical buttons on a white base).
The TC900 Protocol Series is both easy to operate and install. The devices
feature microprocessor-based control and large backlit LCD screens which
display operation status (cooling, heating, auto and ventilation), fan speed,
room temperature and set-point.
TC907-3A4LXPXAB
TC907-3A4LDPSAB
TC907-EF4LDPSAB
TC907-3A4PDPSAB
TC907-3A4PDPSA-24B
TC903-3A4LXPXA
TC903-3A4LDPSA
TC903-EF4LDPSA
TC903-3A4PDPSA
TC903-3A4PDPSA-24

Specifications

Main
Range SpaceLogic
Device short name TC907
Product or component type Thermostat
Sensor type 100 kOhm NTC thermistor
Optional NTC external sensor
Complementary
Device application Fan coil unit
[Us] rated supply voltage 90…240 V AC 50/60 Hz
Network frequency 50/60 Hz
[In] rated current 5 A
Max power consumption in W 2 W
Communication port protocol Modbus – 2 wires
BACnet
Function available Fan control
Low temperature protection
Sleep mode
Mode selection
Colour Black
Housing colour Black
Control type 3 speed control relay, for fan
touch screen
Display type LCD screen
Information displayed Fan speed – in RPM
Room temperature
Temperature alarm
Communication status ok
Time
Day
Measurement accuracy Temperature: +/- 1 °C, 0…50 °C temperature
Number of inputs 1 card reader
Width 86 mm
Depth 14.5 mm
Height 86 mm
Market segment Small buildings
Hotel
Healthcare
Residential
Environment
dehumidification setpoint range 5…95 %
Temperature setting range 5…35 °C
Ambient air temperature for storage 0…50 °C
Standards EN/IEC 60730-1
EN/IEC 60730-2-9
IP degree of protection IP20
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.8 cm
Package 1 Width 10.6 cm
Package 1 Length 5.8 cm
Package 1 Weight 220 g
Unit Type of Package 2 BB1
Number of Units in Package 2 36
Package 2 Height 29.5 cm
Package 2 Width 28 cm
Package 2 Length 38.4 cm
Package 2 Weight 8.286 kg
Unit Type of Package 3 P12
Number of Units in Package 3 864
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 223.874 kg
