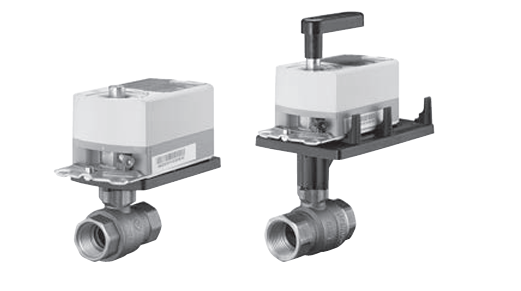

Siemens 171A-10300 TwoWay Ball Valve Assemblies

Siemens 171A-10300 TwoWay Ball Valve Assemblies,
This 599 Series 2-way ball valve with a 2-position control,
normally open, fail safe actuator assembly,
providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors,
fan coil units, unit conditioners, radiation and reheat coils.
This 1/2-inch valve is 0.4 Cv, equal percentage flow characteristic,
with chrome-plated brass ball and brass stem,
and an operating handle that can manually operate the valve in the event of power failure.
171A-10300
171C-10300
171A-10301
171C-10301
171A-10302
171C-10302
171A-10303
171C-10303
171A-10304
171C-10304
171A-10305
171C-10305
171A-10306
171C-10306
171A-10307
171C-10307
171A-10308
171C-10308
171A-10309
171C-10309
171A-10310
171C-10310
171A-10311
171C-10311
