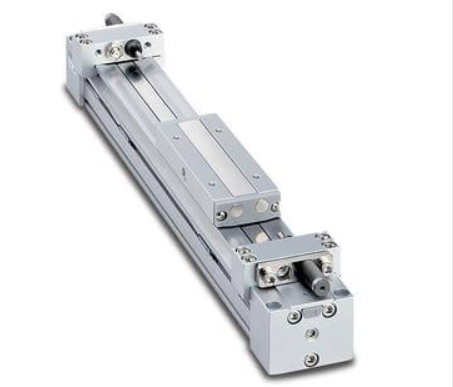

SMC Rodless Cylinder MY1B10 Mechanically Jointed 10mm Bore,
The MY1B10 Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed,
with an inner seal belt to maintain air pressure combined with an outer dust seal band to protect from contaminants.
This design offers a compact footprint compared to rod-style cylinders and features a low profile. Rubber bumpers are standard and external shock absorbers are optional.
- Stroke lengths: 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 3000 mm
- Minimum operating pressure: 0.20 MPa (29 psi)
- Speed: 100~500 mm/sec (w/o stroke adjustment bolt), 100~1000 mm/sec (external shock absorber)
- Long stroke option: up to 3000 mm (XB11)
- Auto switch capable
