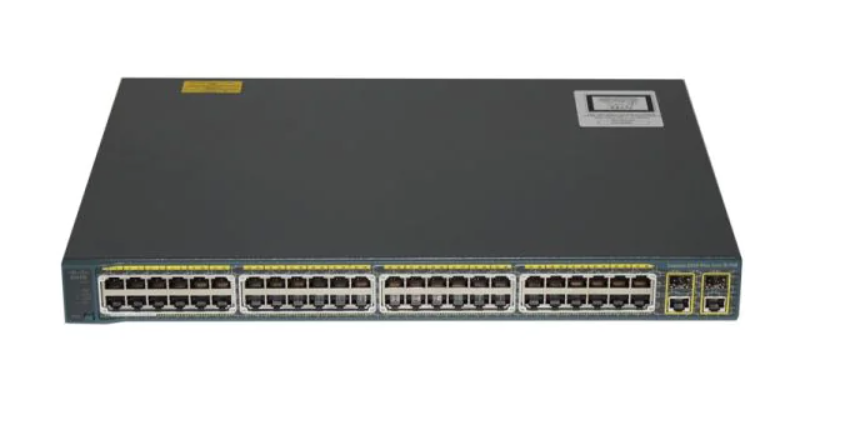

WS-C2960+48PST-S Cisco Catalyst 2960 Plus Switch 48×10/100

WS-C2960+48PST-S Cisco Catalyst 2960 Plus Switch 48×10/100

Add to wishlist
Category: Terminals & Bars
Share: Facebook Twitter Tumblr Linkedin Whatsapp

You may also like

  • AE3F-R2

    AE3F-R2

  • MITSUBISHI ELECTRIC Magnetic contactor S-T10 AC200V 1A

    MITSUBISHI ELECTRIC Magnetic contactor S-T10 AC200V 1A

  • Knock Down Modular Cabinet

    Knock Down Modular Cabinet

  • HS Group - Electrical Automation Products

    Danfoss 132F0016 Frequency Converter FC-051P3K7T2E20H3BXCXXXSXXX

  • Series Thermal Resistance Temperature Isolation Transmitter

    Series Thermal Resistance Temperature Isolation Transmitter

  • Eaton Power Defense 4 Breaker PDC43M0800TAAS

    Eaton Power Defense 4 Breaker PDC43M0800TAAS

Description
Shipping & delivery

WS-C2960+48PST-S Cisco Catalyst 2960 Plus Switch 48×10/100,

Cisco WS-C2960+48PST-S Specification

WS-C2960+48PST-S Specification

Configurations
10/100 Ethernet Interfaces 48
Uplink Interfaces 2 SFP and 2 1000BASE-T
Cisco IOS Software Feature Set LAN Lite
Available PoE Power 370W (24 ports up to 15.4W)
Hardware
Flash memory 64 MB
DRAM 128 MB
Performance and Scalability
Forwarding bandwidth 16 Gbps
Maximum active VLANs 64
VLAN IDs available 4K
Maximum transmission unit (MTU) – L3 packet 9000 bytes
Jumbo frame – Ethernet frame 9018 bytes
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second 13.1
Mechanical
Dimensions (H x W x D) 1.73 x 17.70 x 13.07 in (4.4 x 45.0 x 33.2 cm)
Weight 12 lb (5.4Kg)
Package Weight 20.26 lb (9.19 Kg)
Environmental Ranges
Operating temperature up to 5000 ft (1500 m) 23º to 113ºF

(-5º to 45ºC)

Operating temperature up to 10,000 ft (3000 m) 23º to 104ºF

(-5º to 40ºC)

Short-term exception at sea level* 23º to 131ºF

(-5º to 55ºC)

Short-term exception up to 5000 feet (1500 m)* 23º to 122ºF

(-5º to 50ºC)

Short-term exception up to 10,000 feet (3000 m)* 23º to 113ºF

(-5º to 45ºC)

Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF

(-5º to 40ºC)

Storage temperature up to 15,000 feet (4573 m) 23º to 158ºF

(-25º to 70ºC)

Operating altitude Up to 10,000 Feet

(Up to 3,000 Meters)

Storage altitude Up to 13,000 Feet

(Up to 4,000 Meters)

Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing
Sound Pressure, dBA Typical, LpAm: 41

Maximum, LpAD: 44

Sound Power, dbA Typical, LwA: 51

Maximum, LwAD: 54

MTBF in thousands of hours 312
Connectors and Interfaces
Ethernet Interfaces
  • 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
  • 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
  • 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
  • 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs
  • Per-port status: Link integrity, disabled, activity, speed, and full duplex
  • System status, Port Status, PoE, RPS, link duplex, and link speed
Console Cisco Catalyst console cables:

  • CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Power
  • The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.
  • Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
  • The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.
  • Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.

Table 1 shows the Quick Specs.

Product Code WS-C2960+48PST-S
Enclosure Type Rack-mountable 1U
Feature Set LAN Lite
Uplink Interfaces 2 x SFP and 2 x 1000BASE-T
Ports 48 x 10/100 Ethernet Ports
Available PoE Power 370W
Maximum Number of PoE (IEEE 802.3af) Ports 24 ports up to 15.4W
Forwarding Bandwidth 16 Gbps
RAM 128MB
Flash Memory 64MB
Dimensions 4.4cm x 45.0cm x 33.2cm
Package Weight 9.19 Kg
