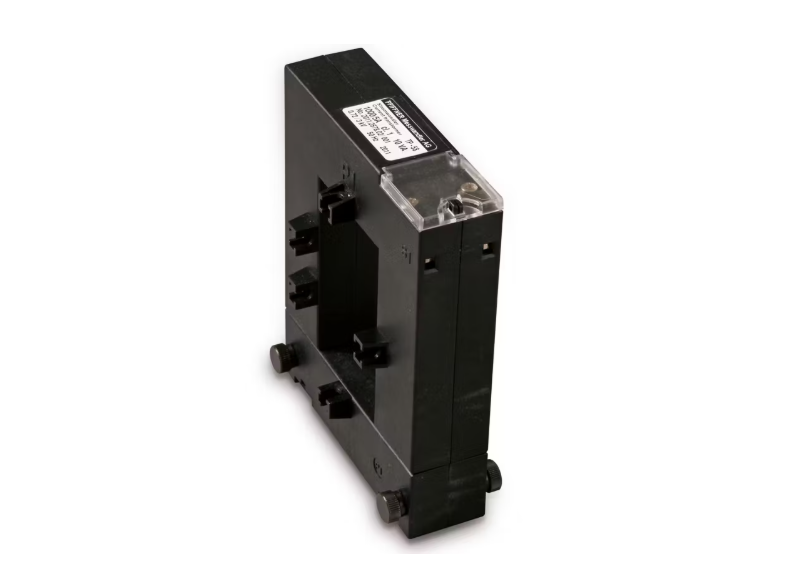

Current transformer TP Split core CT

Current transformer TP Split core CT

Add to wishlist
Category:
Share:

Current transformer TP Split core CT,

  • Split core current transformer
  • Polycarbonate shell design
  • For indoor application
  • Mounting on the primary bar or with plugged pedestals
  • Standard: IEC/EN 61869-2

Technical data

Highest operating voltage 0.72 kV
Test voltage 3.0 kV
Frequency 50/60 Hz
Continuous thermal current 100 % Ipr
Short-time thermal current 100 Ipr 1s
Typ A B C D E F G H I J
TP-23 20 30 52 88 109 34 47 40 32 18
TP-58 50 80 78 114 145 32 32 32 33 18
TP-88 80 80 108 114 145 32 32 32 33 18
TP-812 80 120 108 144 185 32 32 32 33 18
TP-816 80 160 120 184 245 52 47 52 38 32
