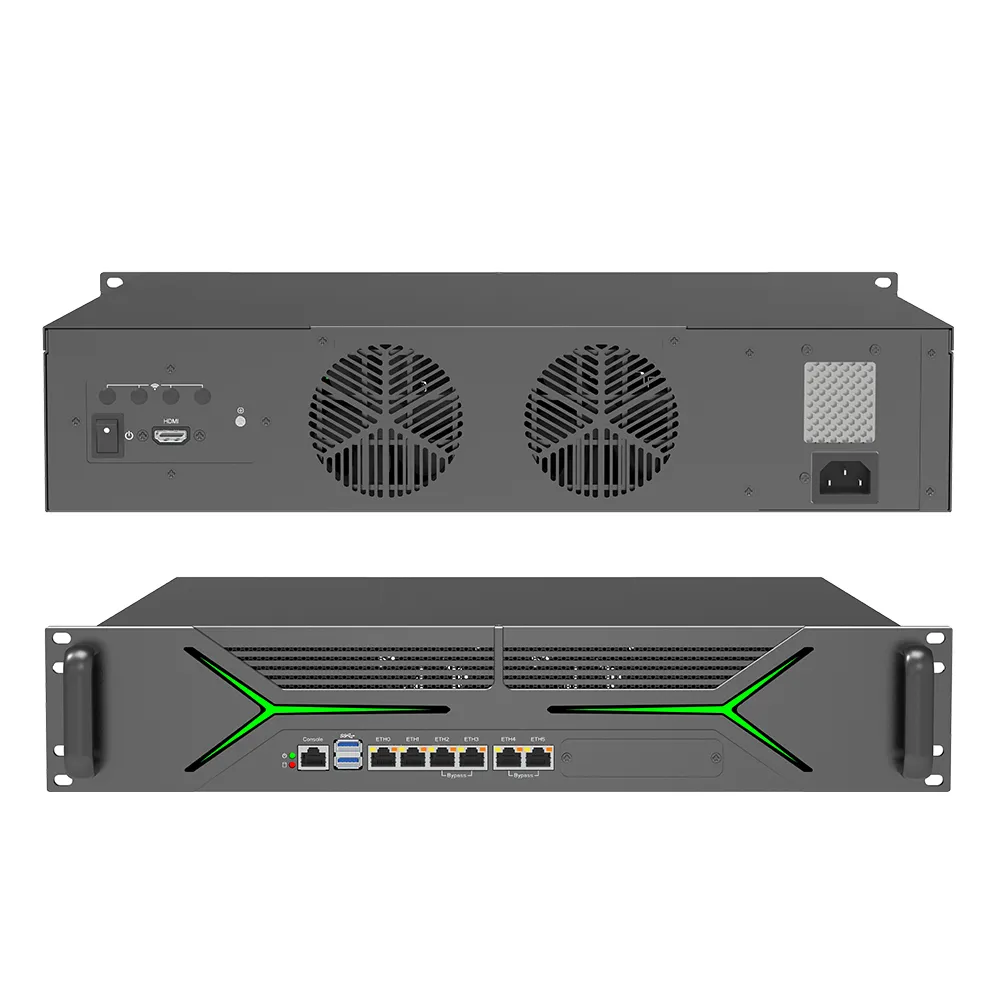

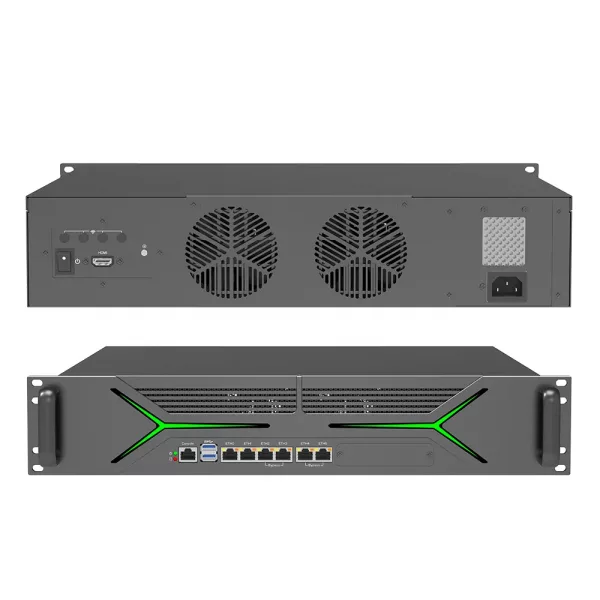

Industrial 2U Computer Rackmount Server,
with Intel H610 chipset 2U,
support 12/13th gen Core i3/i5/i7 of LGA1700,
and 2 DDR4 U-DIMM memory slots,Max. 64G.
| System Parameter | |
| Model | 2U6L-ADL 2U Rack Server |
| Processor | Intel Core I3-12100 (4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB) |
| Intel Core I5-12400 (6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB) | |
| Intel Core I7-12700 (12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB ) | |
| Chipset | Intel H610 |
| Memory | 2 DDR4 3200 U-DIMM Memory Slots, Max. 64 GB |
| Display Port | 1*HD Port |
| Front I/O Port | 1*Power Indicator light, 1 hard disk indicator light, 1 COM (support Console), 2 USB3.0, 6 RJ45 Lan port ( 2 groups of Bypass) |
| Back I/O Port | 1 Power Button, 1 HD Port , 1 AC power |
| Expansion Slot | 1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports);1 M.2 (M-Key 2280, supports SATA SSD)
1 M.2 (M-Key 2280, supports SATA SSD) ; 1 M.2 (B-Key 3042, supports 4G) |
| Expansion Port | Standard shipment doesn’t include this Port: 8 GPIO, 1 COM (RS232/485 optional), 4 USB2.0; 1 USB3.0 (built-in Type-A port) |
| LAN | 6 Intel i210-AT 1000M LAN ports ( 2 sets of Bypass) |
| Storage | 1 M.2 (M-Key 2280 supports SATA), optional 1*3.5” HDD/SSD or 2*2.5” HDD/SSD |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Application | Firewall, Network Server, Network Security, Router etc. |
| Structure Parameter | |
| Color | Black |
| Material | Aluminum Alloy Front Panel, SGCC Cabinet |
| Dimension | 482*471*88.8mm |
| Weight | 7.19 kg (barebone) |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +50℃ |
| Work Humidity | 5% ～ 95% non-condensing |
