Intel 10th Gen i3 i5 Barebone Mini PC Fanless Intel(R) UHD Graphics 620 TPM2.0 windows 11
| System Parameter | |
| Model | Nano N3022 |
| Processor | Intel Core i3 10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache)；
Intel Core i5 8260U (Quad core eight threads, 1.6 GHz,Max. Turbo 3.9 GHz) |
| Intel Core i5 10310U (Quad core 8 threads, 1.6G,Max. Turbo 4.2G, 6MB Cache) ;
Intel Core i7 10810U (Six core twelve threads,1.1 GHz, Max. Turbo 4.9 GHz) |
|
| Chipset | Intel(R) UHD Graphics 620，Intel(R) UHD Graphics |
| Memory | Support 1*DDR4 2400/2666 memory slot, Max 32GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 1*DP，1*HD |
| Storage | Support 1*M.2 2280 Slot，1*2.5”HDD ，support RAID 0/1 |
| Expansion | 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD); 1*MINI PCIE slot (WIFI/3G/4G choose one from three),embedded SIM Slot |
| Front I/O | 2*COM（optional RS232/485），4*USB3.1，1*Power button，1*SIM card |

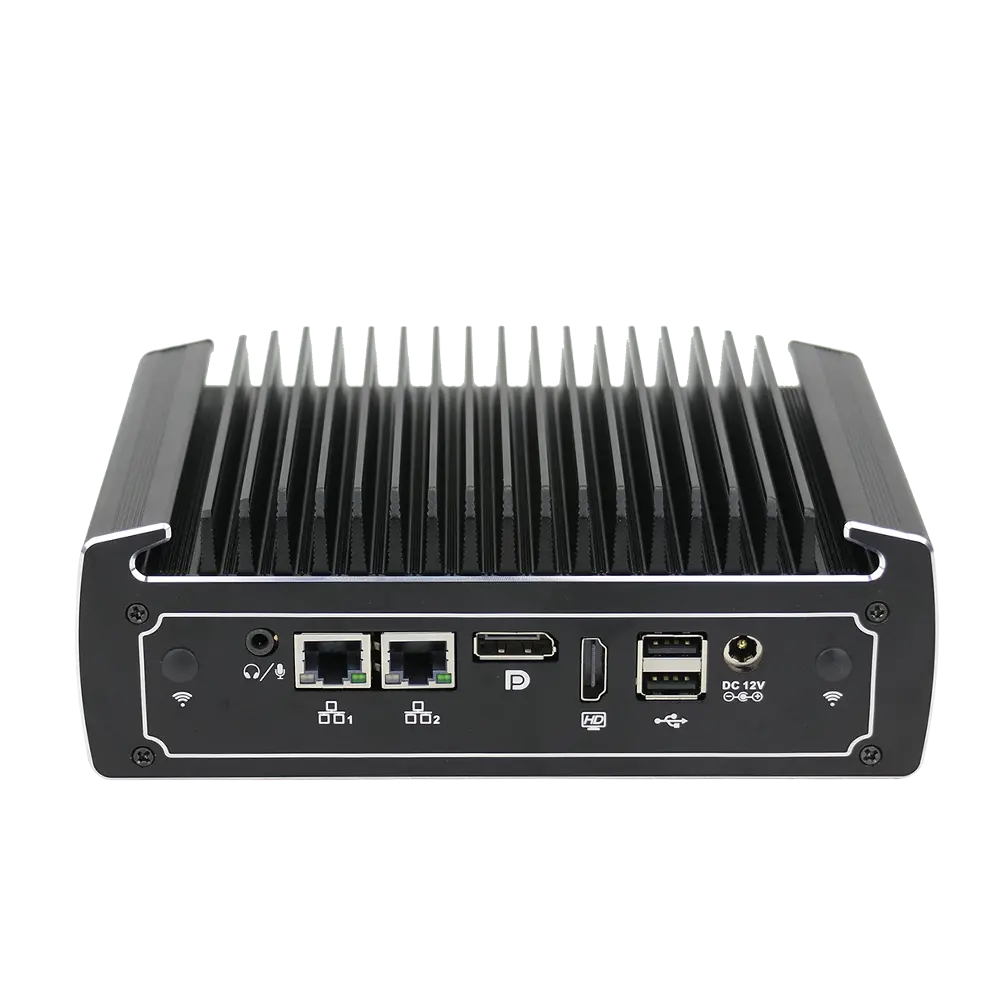

| Rear I/O | 1*DC，2*USB2.0，1*HDMI，1*DP, 1*Audio ( Support Mic and Speaker at the same time，2*Intel 1000M LAN |
| Expansion slot | Support 1 M.2 2280 M-Key slot (supports SATA protocol and NVME protocol) |
| Support 1 MINI PCIE slot (choose one from WIFI/3G/4G), front SIM card holder | |
| Expandable port (standard shipment does not include this interface): 2 USB2.0, 3-way GPIO | |
| Network | 2 Intel i210-AT or 2 Intel i225-V 2.5G Ethernet. |
| Input Voltage | DC 12V Input； |
| Certificates | CE、 CCC、 FCC Class A、 ROHS |
| Other Function | TPM2.0, Auto power on when there is electricity、 Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
| Application | Business Office, HD Video Playback, Electronic Education, Industrial Automation etc. |
| Structure Parameter | |
| Color | Black【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 186 * 126.5 * 66 mm |
| Weight | 1.3 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow |
| Work Humidity | 5% ～ 95% non-condensing |
