Schneider SCP Series SCP110 Model Pipe & Contact Humidity Sensors Supply 24 VAC 006902500

Schneider SCP Series SCP110 Model Pipe & Contact Humidity Sensors Supply 24 VAC 006902500

Add to wishlist
Category:
Brand:
Share:

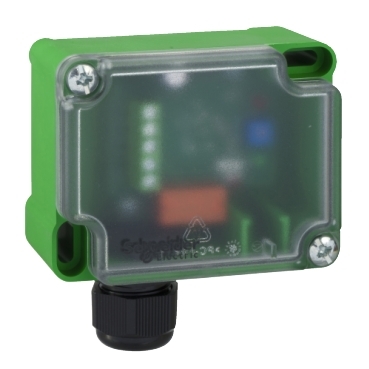

Schneider SCP Series SCP110 Model Pipe & Contact Humidity Sensors Supply 24 VAC 006902500
These devices are suitable for fixing to chilled pipework to sense and
therefore take control action against the formation of condensation.
The SCP110 is designed for direct mounting onto pipe systems. The sensor
element is mounted in the contact material below the housing.
The SCC110 has a remote sensor with a 2 m (6.56 ft.) wire. The sensor
element is fitted into a sensor head made of aluminium.

Specifications

Main
Range of product SCP110
Product or component type Sensor
Height 65 mm
Net weight 0.15 kg
Width 85 mm
Ambient air temperature for operation 0…60 °C
Standards EN 50082-1
EN 50081-1
[Us] rated supply voltage DC
24 V AC +/- 10 %
Targeted region Europe
Asia Pacific.
Complementary
Output type Analog 24 V 1 A
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.8 cm
Package 1 Width 9.2 cm
Package 1 Length 6.8 cm
Package 1 Weight 200 g
Contractual warranty
Warranty 24 months
