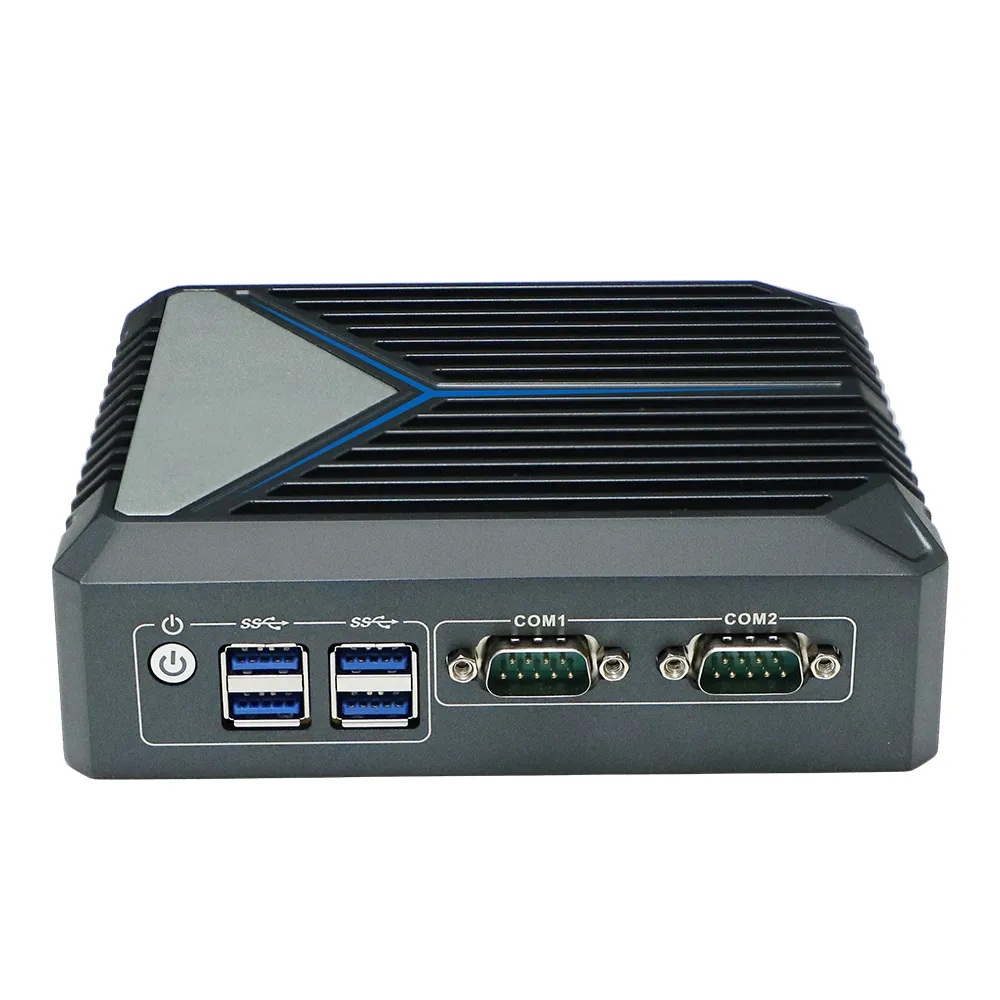

Yanling N100 Mini Pc Fanless
12th Alder Lake-N n100 Mini PC, with a 2 Intel i226-V 2.5G LAN,
also have 1*DDR4 3200 RAM Slot, Max 16GB,
and SSD + WIFI + 4G at the same time,
finnaly 4K 2*HDMI port dual display, 6*USB（3*USB3.1）
| System Parameter | |
| Model | NANO-N1321 |
| Processor | Intel Alder Lake-N N100 (Quad Core quad threads，Max turbo 3.4 GHz) |
| Chipset | Intel(R) UHD Graphics |
| Memory | Support 1*DDR4 3200 SODIMM RAM Slot，Max 16GB |
| BIOS | AMI UEFI BIOS |
| Display Port | 2xHD-mi 4K display port |
| Storage | 1xM.2 2280 slot,1×2.5″ HDD |
| Expansion | 1*M.2 2280M-key-slot（support SATA& PCIE3.0X1 NVME）
1*M.2 2230E-key-slot（WIFI&BT） 1*MINI PCIE slot 【USB2.0 signal，optional：3G/4G】，External SIM card slot |
| Front I/O | 1*Power Button，3*USB3.1，1*USB 2.0, 2*COM (support RS232) |
| Rear I/O | 1*DC，2*HDMI，2*USB2.0，2*RJ45 Lan,1*Mic&Audio,1*SIM card slot |
| Network | 2*Intel i226-V 2.5G Internet |
| Input Voltage | DC 12V |
| Certificates | CE,CCC,FCC Class A,ROHS |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption |
| Application | Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR, |
| Structure Parameter | |
| Color | Metal gray 【Any color can be customized】 |
| Material | High-quality all aluminum，surface anodic oxidation |
| Dimension | 150 * 126.5 * 45 mm |
| Weight | 0.84 kg |
| Environmental Parameter | |
| Work Temp | 0℃ ～ +40℃（Commercial HDD），0℃ ～ +60℃（Industrial SSD），Surface air flow |
| Work Humidity | 0% ～ 95% non-condensing |
